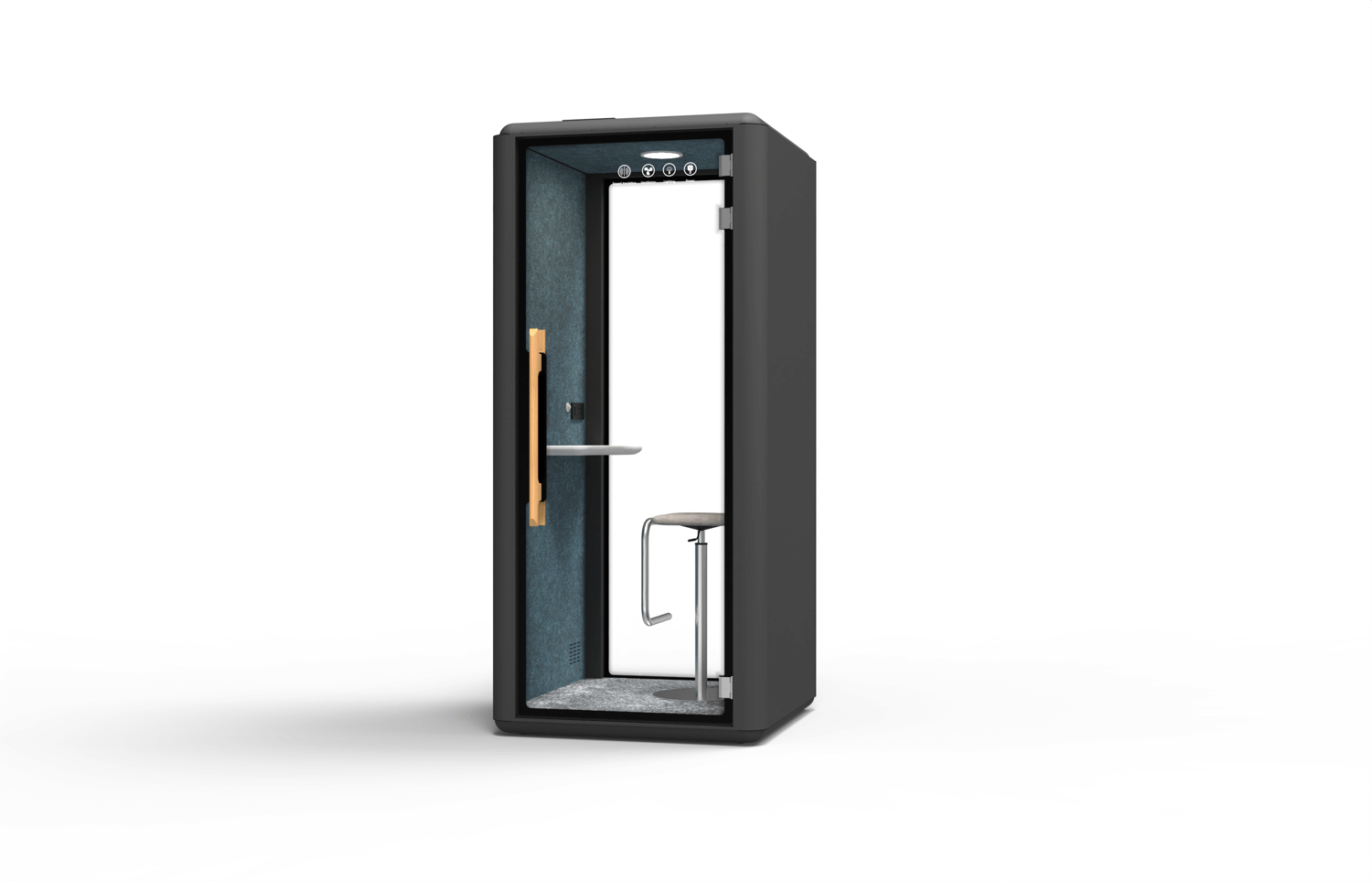

Silo Single Person Pod

Providing a quiet, efficient, and flexible environment that fosters creativity and productivity. Silo Pods are great for Open Plan offices, Large atrium public spaces and Airports. Experience the difference a silo pod brings to your space.

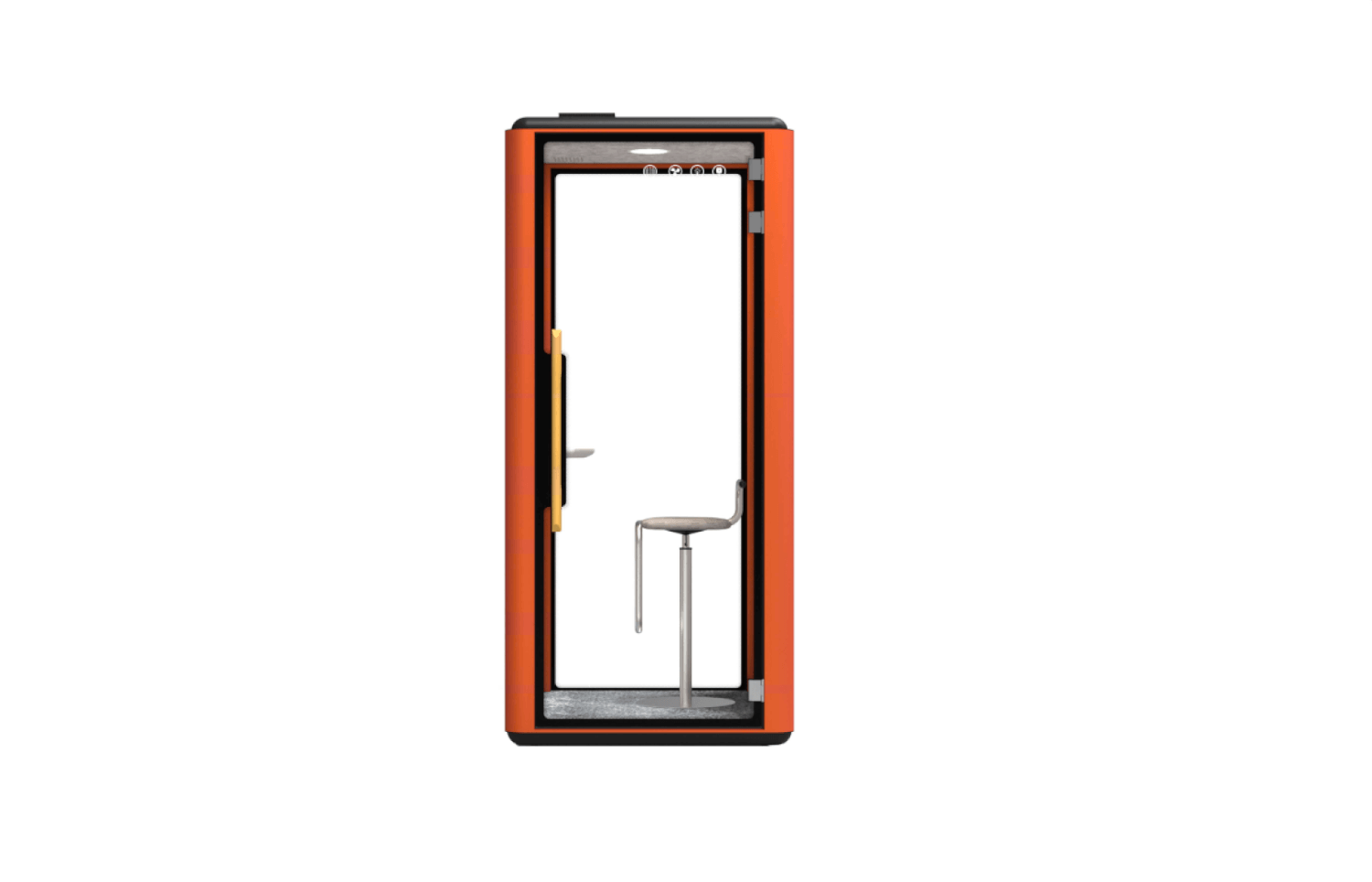

Slate Grey Shell is stocked as standard. Any Pantone colour is available to order with a lead time of 12 to 14 weeks

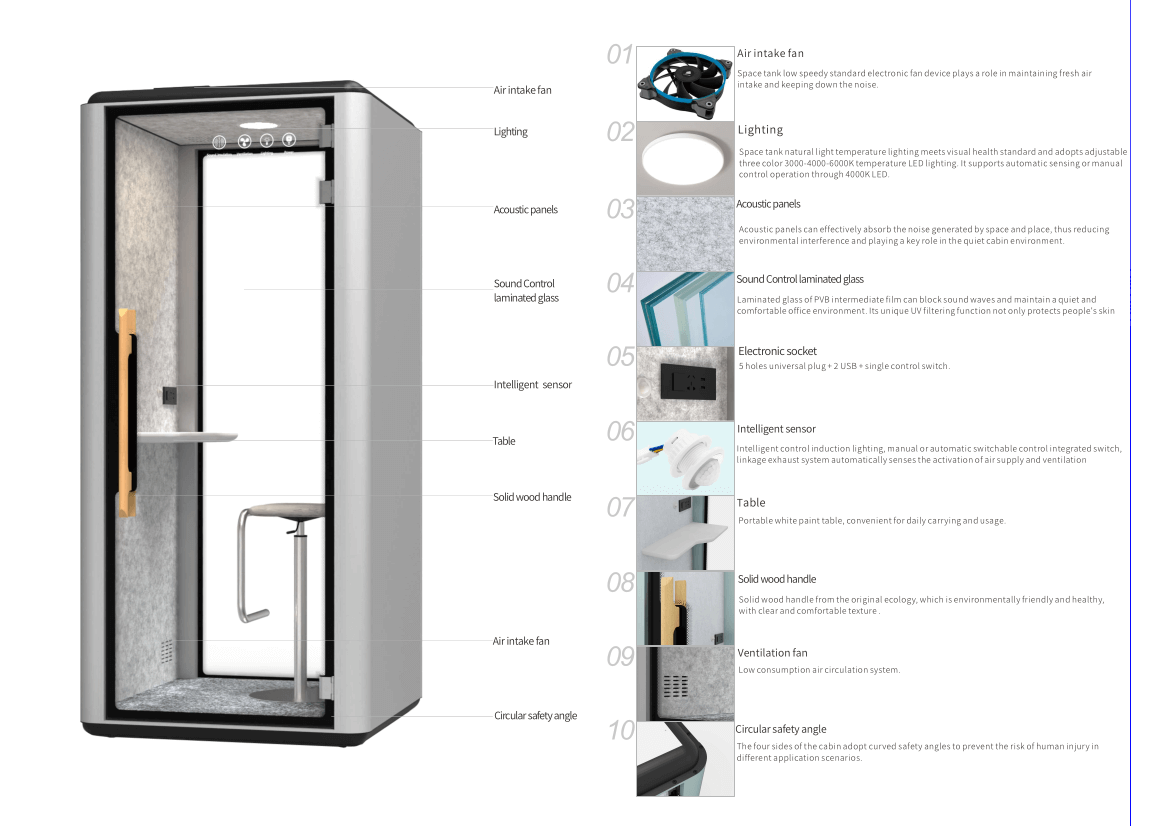

Overview:

• Material: 3.5mm Rounded Edge Slate Grey Aluminium Shell
• Certification: SGS Certified
• Design: Modular for Quicker Installation
• Sound Insulation: 15mm Thick Sound Insulating Board
• Mobility: Locking Feature Complete with Castors
• Tables: White Fixed Tables (Pod-S & M Only)
• Interior Finish: Light Grey Wall Covering
• Flooring: Dark Grey Anti-Static & Anti-Foul Carpet
• Ventilation: Ultra-Thin & Quiet Fresh Air Circulation System
• Noise Levels: Low Operational Noise

Benefits:

• Enhanced Productivity: Over 50% of people struggle to concentrate in open-plan offices. Silo Pods provide a quiet, private space to boost focus and creativity.
• Efficient Meetings: 80% of meetings are between 1-4 people. Silo Pods offer an ideal space for these interactions, improving efficiency.
• Flexibility: The mobile, modular design allows for easy relocation and setup.

Dimensions:

• Product GW: 260KG
• Exterior: W1075 x D990 x H2300 mm
• Interior: W947 x D958 x H2000 mm

Material Details:

• Frame: 6063-T5 Refined Aluminium Alloy (Average thickness > 1.5mm, Load-bearing structure > 2.0mm)
• Finish: AKSU or equivalent electrostatic powder spraying process (Adhesion meets national standard GB9286-98)
• Glass Door: 10mm Tempered Clear Glass (Optional 5+(1.14pvd)+5mm laminated tempered glass with 3C certification)
• Floor Structure: Floating cold-rolled steel pipe skeleton with horizontal adjuster, 15mm soundproof board, and >12mm thick carpet (easy to clean)
• Soundproofing: E1 grade polyester fibre sound-absorbing board + sound-absorbing cotton + soundproof carpet, high-quality cold-rolled steel plate, EVA sound insulation strips for complete sound isolation

Circuit System:

• Power: Modular pre-installation of aviation waterproof quick connector, total electrical power ≥ 4500 watts
• Sockets: Bull brand 5-hole universal plug + 2 USB ports + single control switch
• External Power Supply: Pure copper oxygen-free 3-core wire, 1.5 metres and 5 square metres; B-shaped plug with concave anti-slip design; 10A glass fuse
• Lighting: Intelligent control of induction lighting, manual and automatic switchable, automatic exhaust start, LED lighting with adjustable 3000-4000-6000K natural light colour temperature, meets visual health standards

Fresh Air System:

• Control: Independent control switch
• Filter: HEPA13 filter screen
• Efficiency: Low noise fresh air system maintains air circulation inside the cabin, ventilation efficiency of no less than 1 minute per space
• Design: Dual circulation with upper inlet and lower outlet, no negative/positive pressure, temperature difference ≤ 2°C, labyrinth design for low noise

Soundproof System:

• Certification: SGS certified environmental certificate, complies with GB/T18883-2002 indoor air quality standards
• Insulation: According to GB/T19889.4-2005, in a normal office environment (3500-8000 Hz), at 1 metre distance, sound insulation is 28 ± 3 decibels

Mobility/Fixation:

• Pulley Device: Optional hidden pulley device for easy movement and adjustment
• Telescopic Screws: Built-in adjustable telescopic screws for secure fixation
